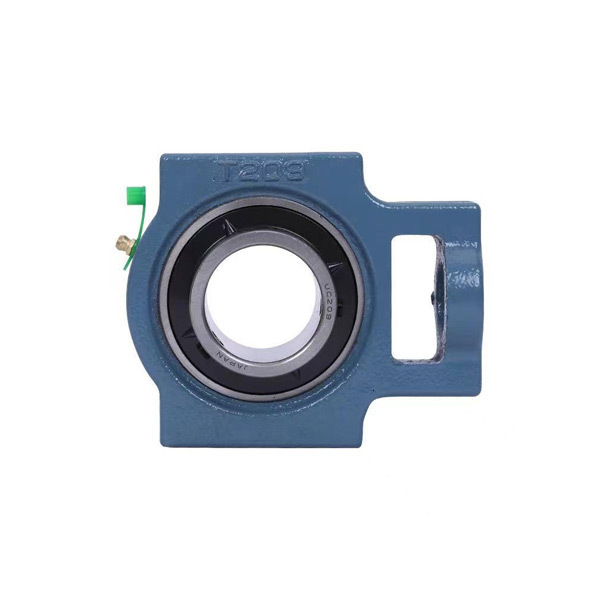

UCT take-up units are used where shaft adjustment and belt-tightening devices are required, such as in conveyor applications. These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment. Slot spacing and width are interchangeable with competitive units. Housing designed for ease of bearing replacement.
VIEW MORE +

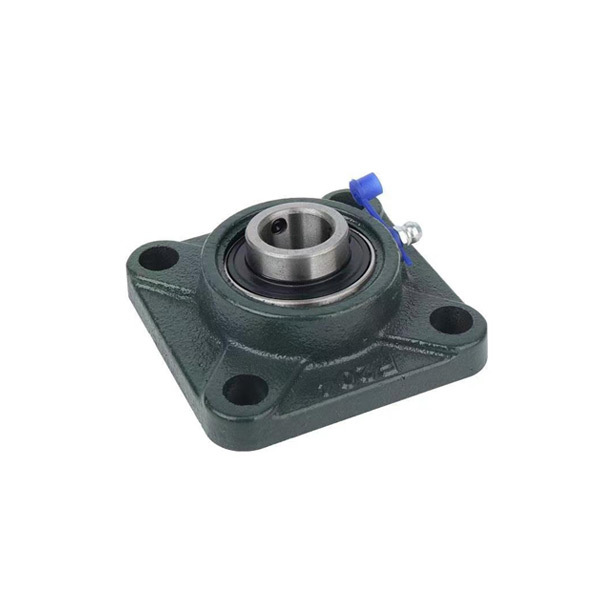

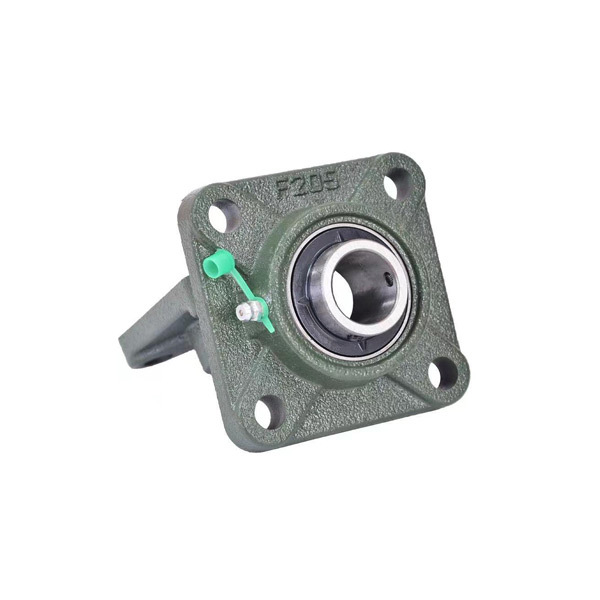

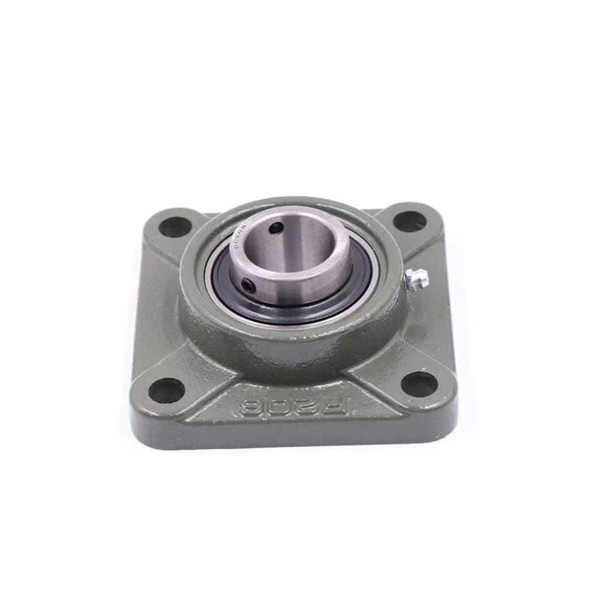

Square flanged ball bearing unit with set screw locking, cast iron. They consist of an insert bearing, with an extended inner ring and grub screw locking, suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
VIEW MORE +

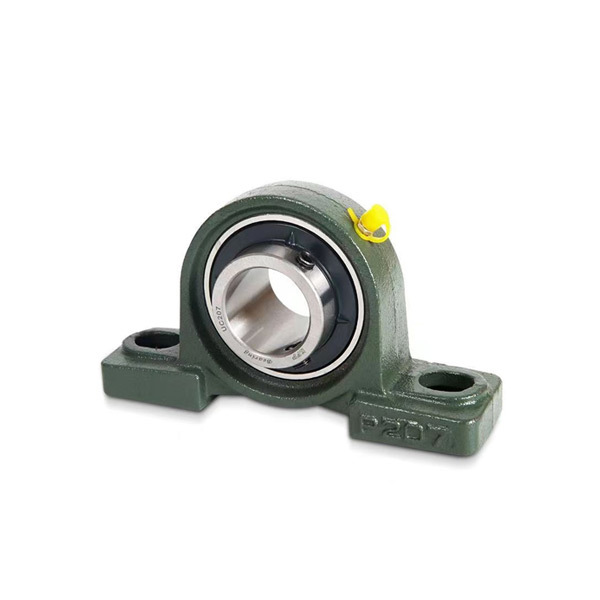

UCP series housed units feature the set screw locking (UC) bearing insert. Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount. Housing designed for ease of bearing replacement.
VIEW MORE +

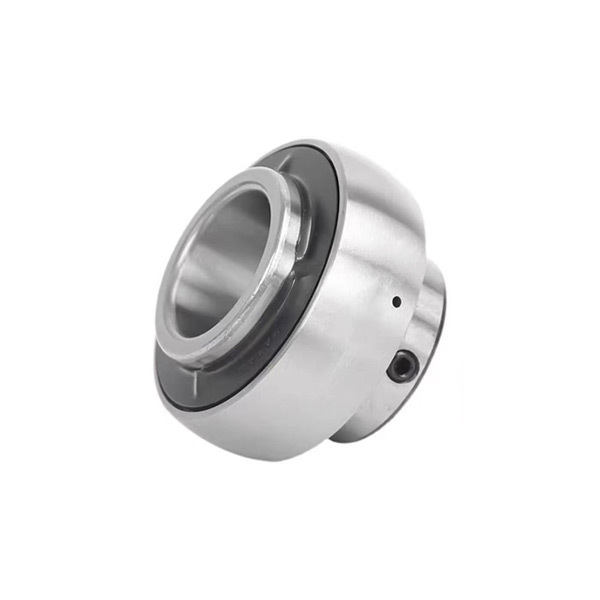

The UK wide inner ring ball bearing uses an adapter sleeve locking mechanism and is suggested for industrial applications where normal loads are encountered. Bearing prelubricated and ready for immediate installation. The wide inner ring provides effective shaft support for a broad range of industrial applications. An external steel flinger provides additional protection from contamination. The UK series features superfinished raceways, grade-10 balls for smooth running and low noise operation. UK series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical inside surfaces to compensate for shaft misalignment.
VIEW MORE +
The UEL wide inner ring ball bearing uses an eccentric locking collar mechanism and is suggested for industrial applications where normal loads are encountered. The UEL series features superfinished raceways, grade-10 balls for smooth running and low noise operation. UEL series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical.
VIEW MORE +
UC200 series (light series), UC300 series (heavy series), and deformed product UB(SB)200 series, if the use environment is small, generally choose UC200 series, otherwise choose UC300 series. Generally, there are two jacking wires on the outer spherical ball bearing, and the included angle is 120°. Environmental requirements must have a small vibration range. This kind of outer spherical ball bearing is relatively common and widely used in textile machinery, ceramic machinery and other manufacturing industries.
VIEW MORE +
